FERO
“Designed to Endure”
Premium PV mounting structures manufactured in Lahore, Pakistan. Hot-dip galvanized to ASTM A123. Wind rated to 35m/s. Backed by a 10-year structural warranty.
Why We Built FERO
When GFE started installing solar systems, mounting structures available in the local market had no standardization. Design and fabrication were largely undocumented, done casually, without engineering validation behind them.
GFE's own work on SAP simulation, wind load testing, and ASTM compliance for its installations exposed that gap directly, and became the basis for building FERO: a mounting structure brand designed and manufactured to a documented, tested standard, not assembled on an ad hoc basis.
ManufacturingDesigned and Built In-House
FERO structures are designed, engineered, and fabricated by GFE's own team at its Lahore manufacturing facility. GFE does not import or resell mounting hardware — every structure in the FERO range is produced in-house from raw material to finished product.
Two material families across the range: SS400 iron, hot-dip galvanized to ASTM A123 (or painted, on request), and Aluminium 6063 T5, anodized.
FERO is a separate manufacturing entity within the GFE group, not an internal-only supplier. It designs and fabricates for GFE's own EPC installations and equally for third-party EPCs and retail customers ordering mounting structures independently of any solar package.
Design capability
Inclination, wind rating, and foundation type are specified per project based on site soil conditions, roof type, and local wind-load requirements — standard process for every order.
In-house manufacturing
Laser CNC cutting, hydraulic press forming, precision bending, argon and multi-process welding, and dedicated aluminium and iron punch lines at the Lahore facility.
In-house electrical DBs
GFE also manufactures electrical distribution boards used in SCADA and energy-monitoring installations — structures and automation from one operation.
Common questions
Does FERO manufacture in Pakistan or import structures?
Every FERO structure is fabricated at GFE's own facility in Lahore — none are imported.
What materials does FERO use?
SS400 hot-dip galvanized iron for ground-mount, shell roof, elevated shed, and parking shed structures; anodized Aluminium 6063 T5 for railing systems and flat-roof mounts.
Can FERO manufacture custom structures outside the standard product range?
Yes. Inclination, foundation type, and wind rating are engineered per site as standard practice, and the same facility also manufactures electrical distribution boards for automation and SCADA installations.
Explore by application
2 structures
Aluminium Solar Mounting Structures
L2 and L3 aluminium mounting systems for flat-roof and ground installations where light weight and corrosion resistance matter most.
View range2 structures
Ground Mount Solar Structures
P2 ground-mount systems in pile-driven and concrete-pile variants — choose the foundation that matches your soil conditions.
View range2 structures
Shell Roof Solar Mounting Structures
Shell-roof mounts for curved and profiled industrial roofs — NS Beams and EW Beams variants matched to your beam orientation.
View range2 structures
Elevated Shed Solar Structures
P2 and P3 elevated layouts that raise the PV array above rooftop obstacles and reclaim shaded capacity.
View range2 structures
Aluminium Solar Railing
Two railing systems — non-standing-seam and standing-seam — for safe, low-load rooftop PV mounting.
View range2 structures
Custom Solar Mounting Structures
Beyond the standard ranges — tubewell/irrigation mounts and dual-use solar gazebo (patio) structures.
View range3 structures
Solar Parking Shed Structures
Three parking canopy layouts — single-side arm, double-side arm, and shed type — in painted or hot-dip galvanized SS400 iron.
View rangeBrowse all structures

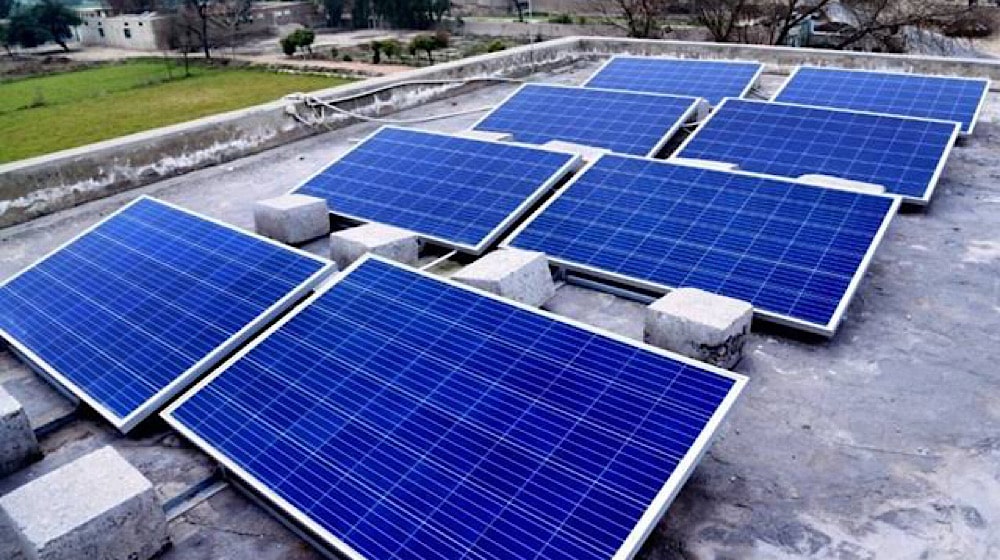

- L2 Aluminium — Flat roof & ground aluminium mount

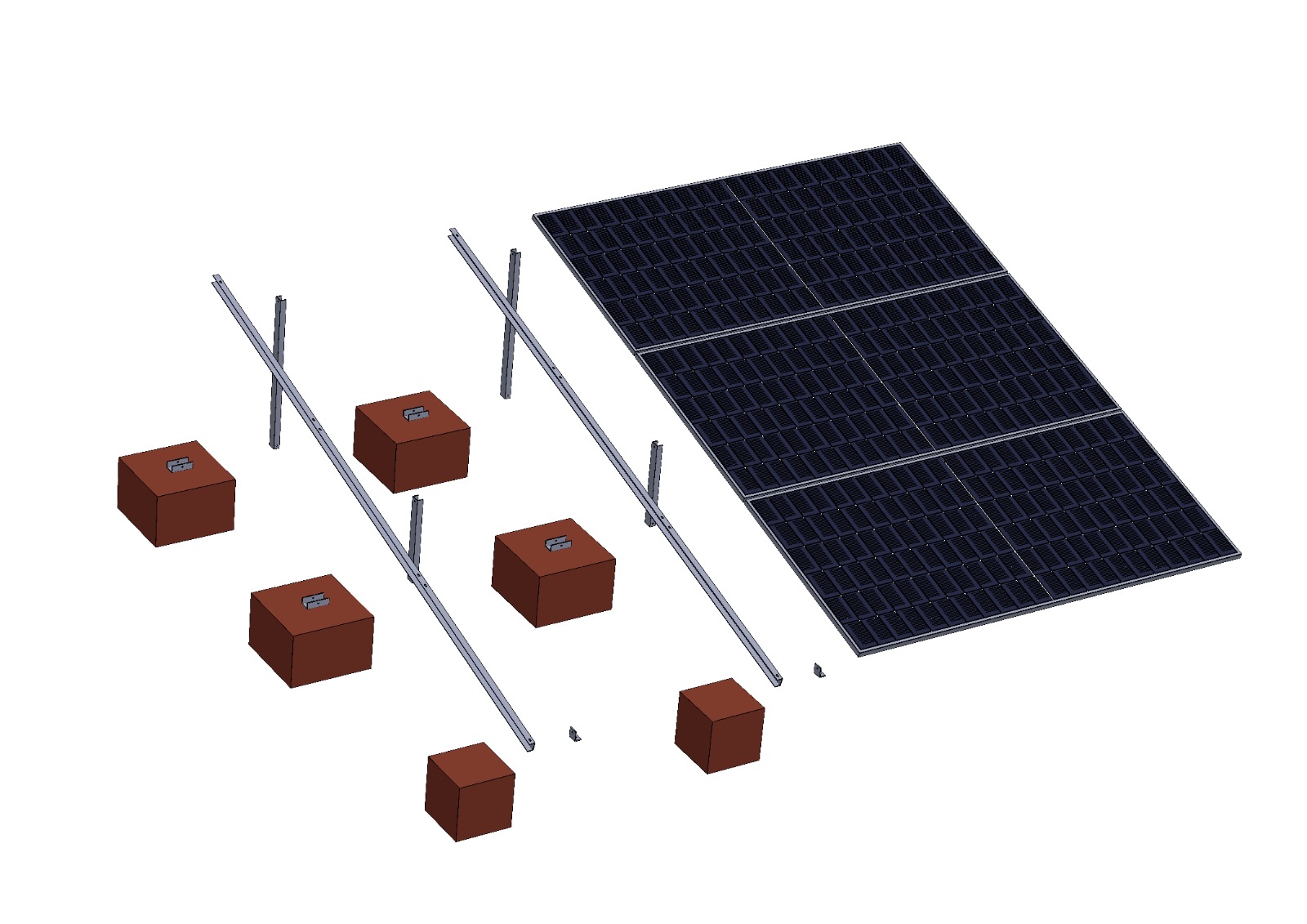

- L3 Aluminium — Larger-span aluminium mount
- P2 Pile Driven — Pile-driven ground mount

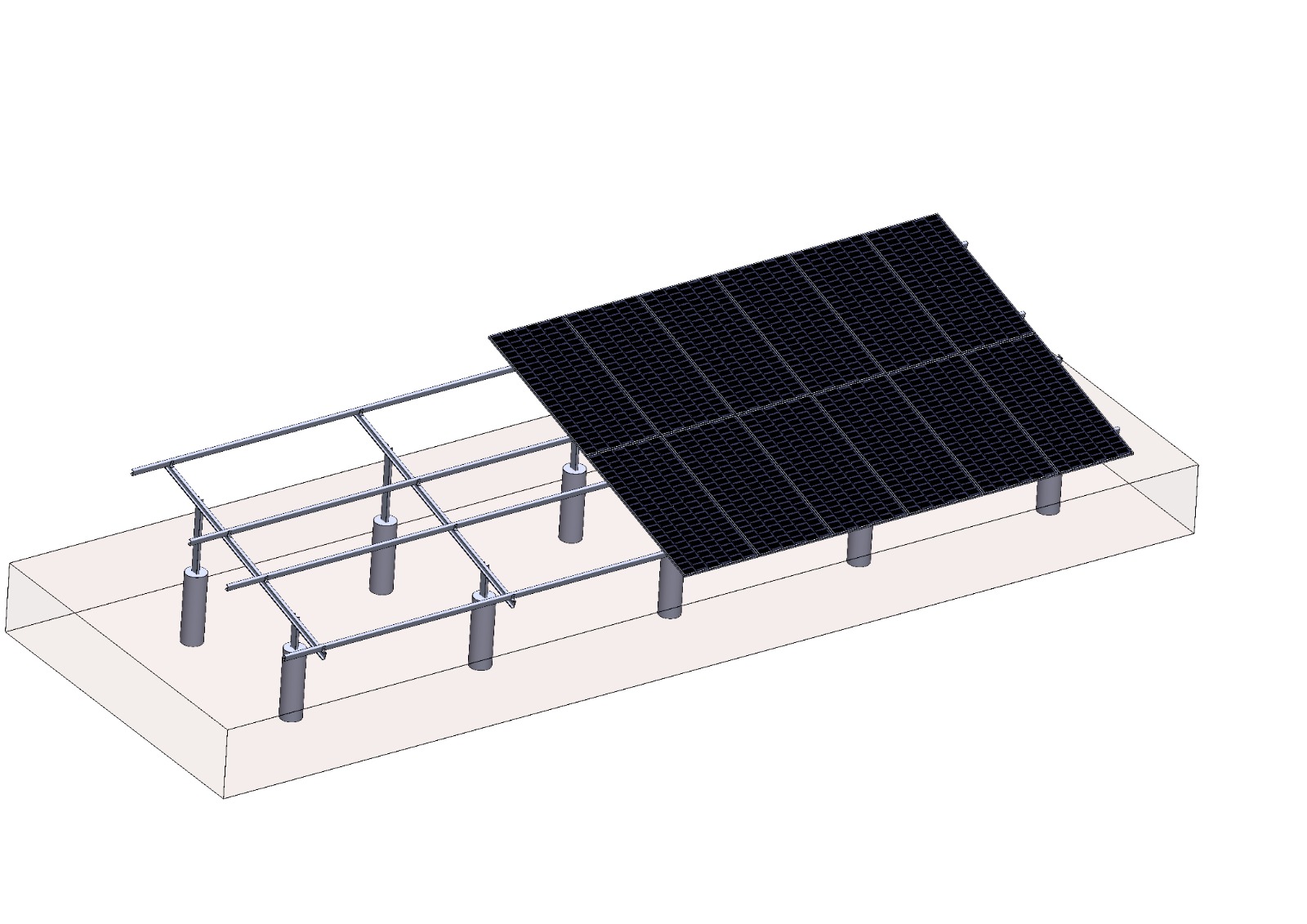

- P2 Concrete Pile — Concrete-pile ground mount

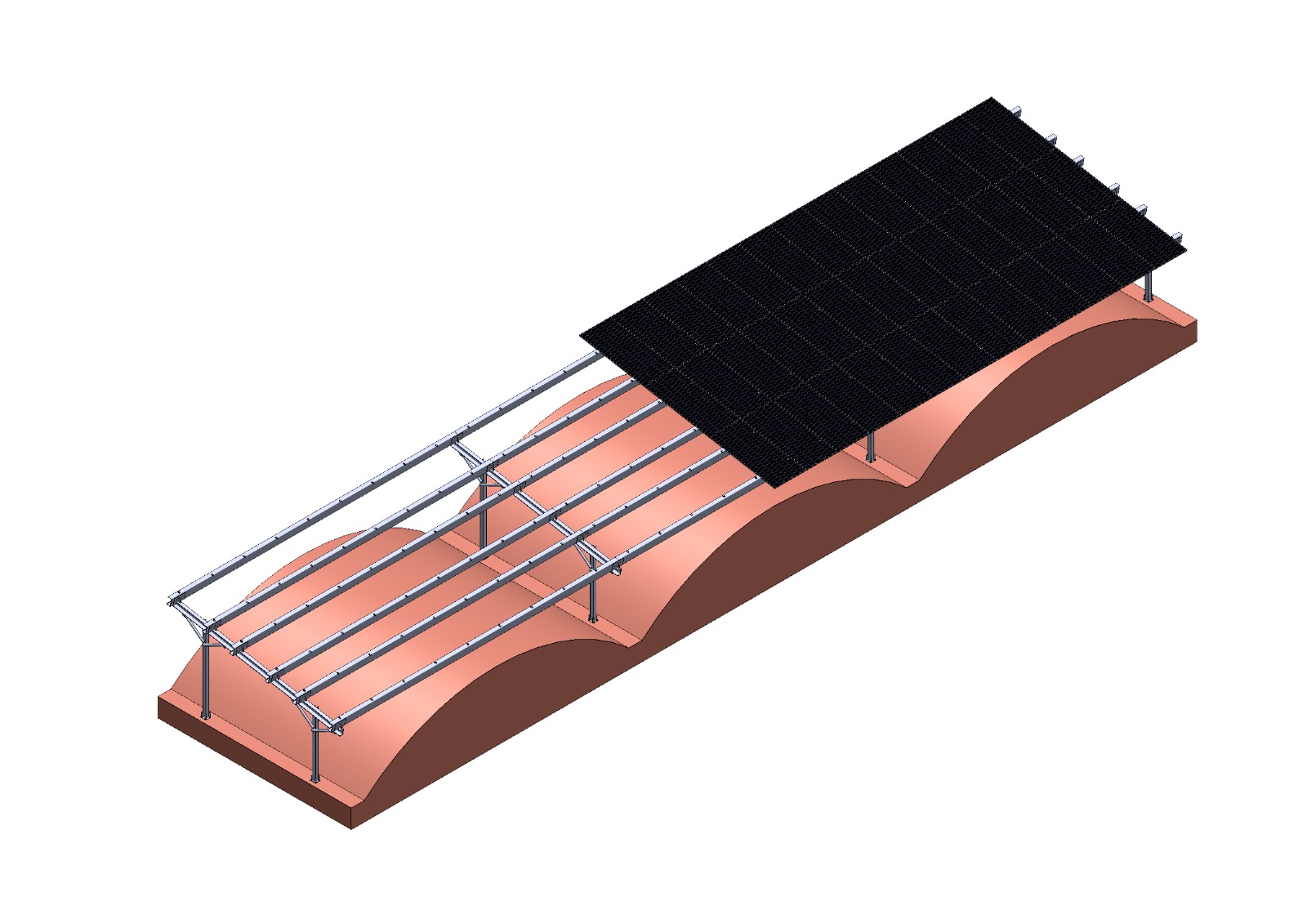

- P3 Shell Roof (NS Beams) — Shell roof — North–South beams
- P2 Shell Roof (EW Beams) — Shell roof — East–West beams

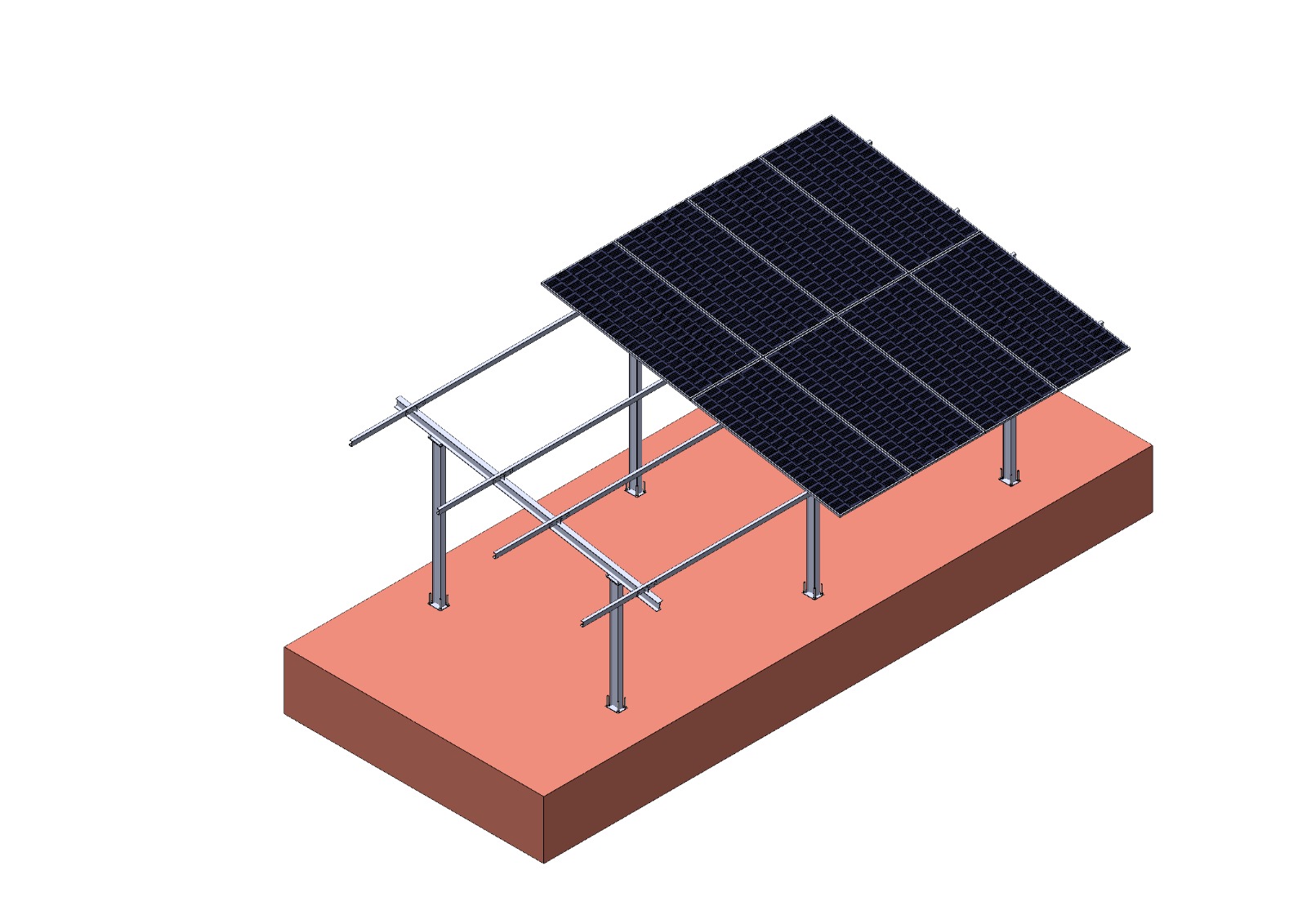

- P2 Elevated Shed — Elevated shed — two-leg

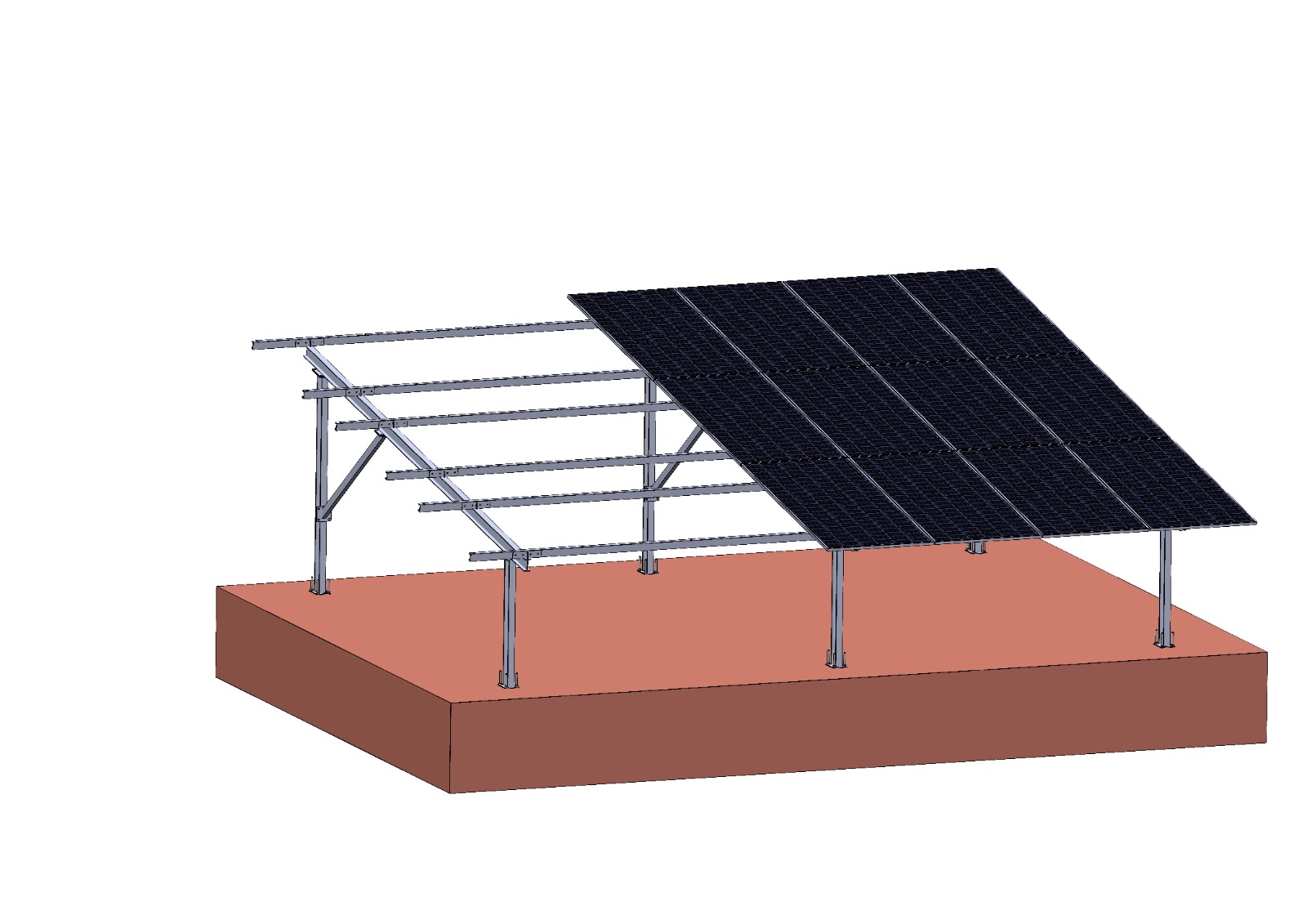

- P3 Elevated Shed — Elevated shed — three-leg

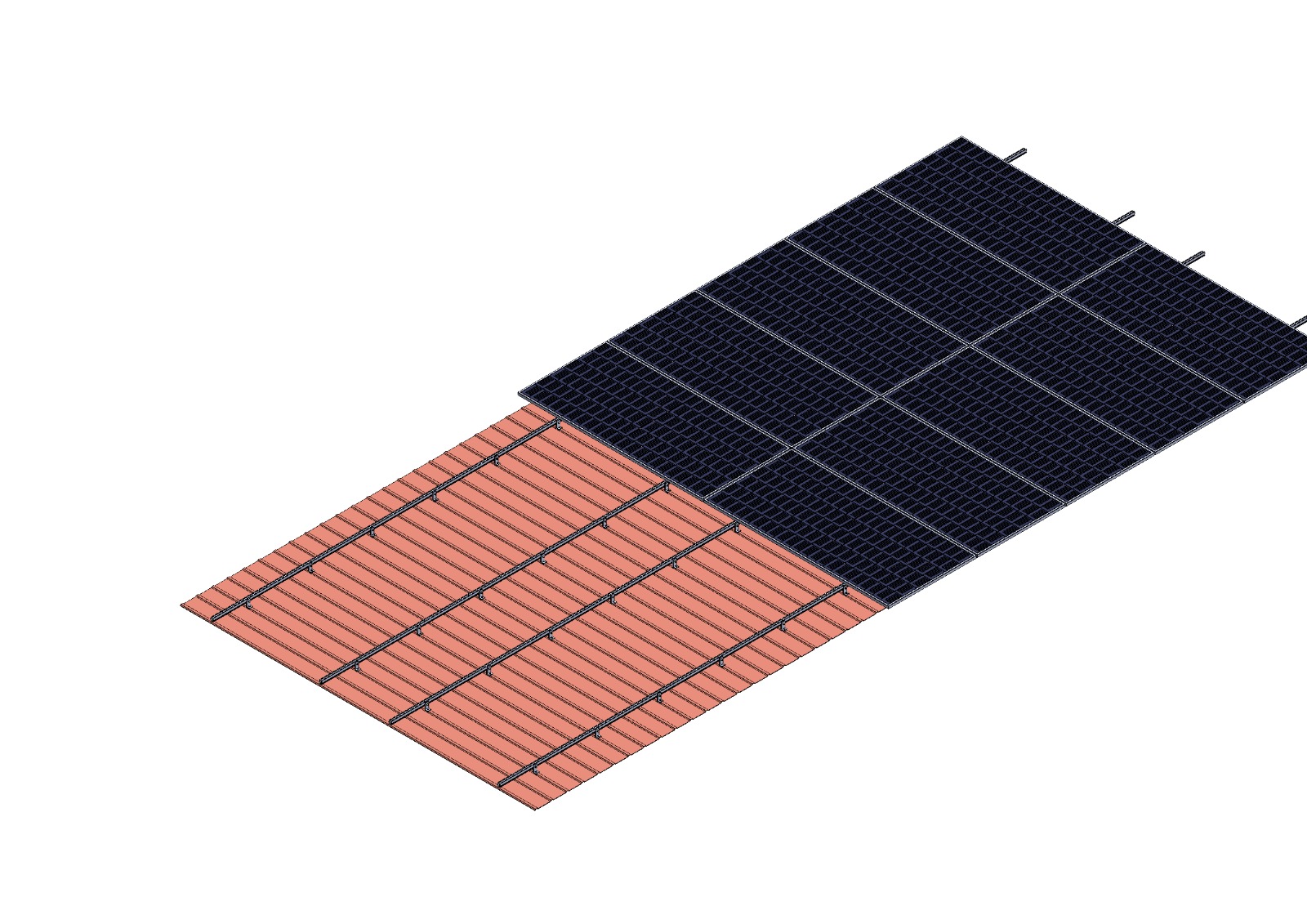

- Aluminium Railing (Non Standing Seam) — Railing — non standing seam
- Aluminium Railing (Standing Seam) — Railing — standing seam
- Solar Tubewell / Water Pump Structure — Tubewell & irrigation mount
- Solar Gazebo — Solar gazebo / patio
- Single-Side Arm Parking Shed — Parking shed — single-side arm
- Double-Side Arm Parking Shed — Parking shed — double-side arm
- Shed Type Parking Shed — Parking shed — shed type
Why Specify FERO?
ASTM A123
Hot-dip galvanized to the international standard for long-term corrosion resistance.
10-Year Warranty
Full structural warranty — longer than any comparable imported product at our price point.
35m/s Rated
Load-tested for wind speeds exceeding design requirements for all major Pakistani cities.
Made in Lahore
Manufactured locally — shorter lead times, no import duties, and direct technical support.
See FERO structures on our completed installations across Pakistan.
Need the Full Technical Catalogue?
Download the FERO 2025 Product Catalogue with full technical drawings and specifications.
Your site assessment is free.
Your quote arrives in 48 hours.
Tell us your site location and monthly consumption — GFE's engineers will have a preliminary sizing and cost estimate to you within two business days.
