Shed Type Parking Shed
A framed shed with columns at both ends of the span, giving a roof of modules over a larger parking area.

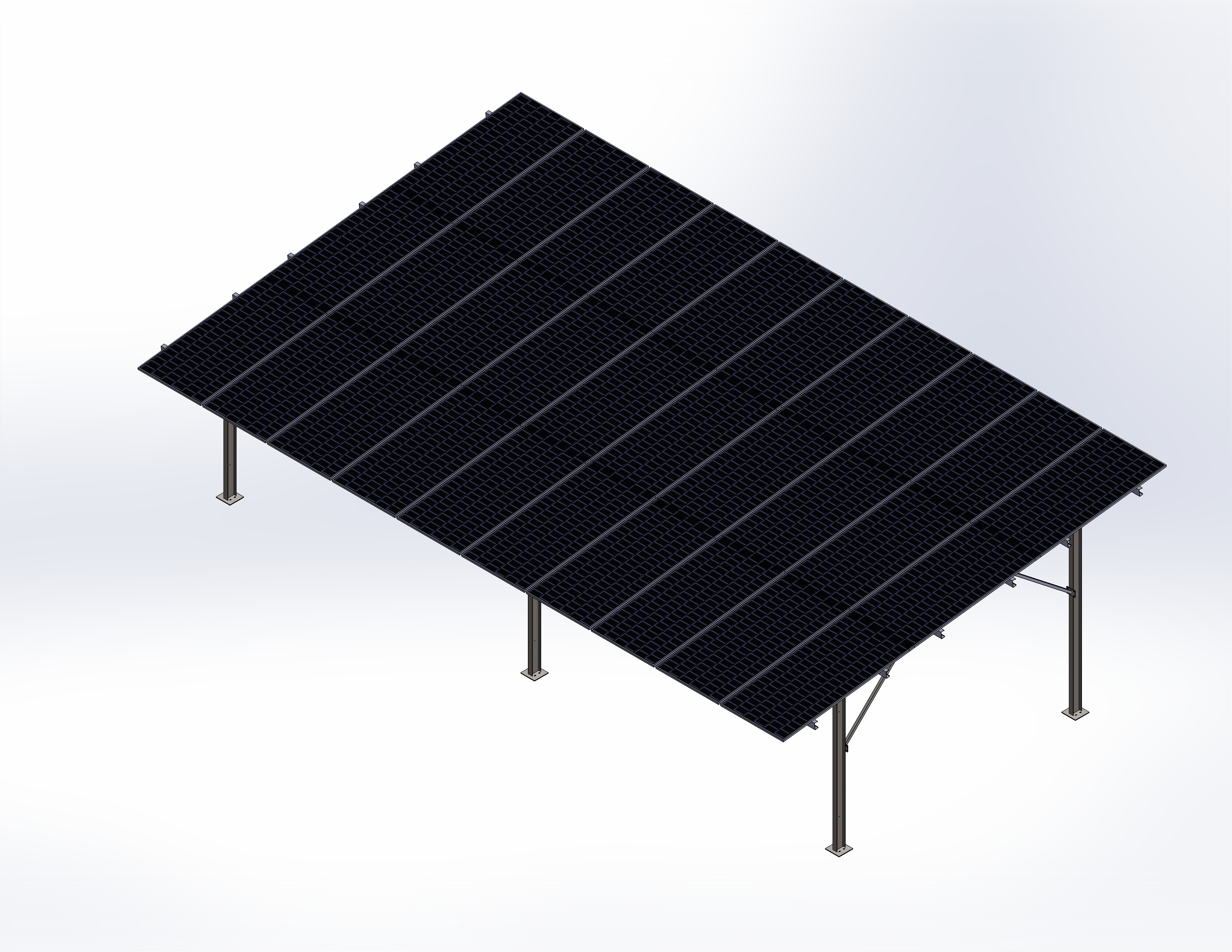

FERO design drawings. Photos of installed structures are on the project pages linked below.
The shed type suits sites where columns between bays are acceptable, and puts a roof of modules over a larger parking area. Haideri Beverages uses a shed type parking structure on its 350 kWp plant.
Shed Type Parking Shed specifications
FERO Shed Type Parking Shed
10 year warranty| Application | Car park |
|---|---|
| Material and grade | SS400 iron |
| Coating | Hot-dip galvanized to ASTM A123, 90 microns |
| Fasteners | Galvanized for the structure, SS304 for the modules |
| Inclination | 5 to 15 degrees, customizable |
| Design wind speed | 35 m/s (126 km/h), customizable |
| Warranty | Every FERO structure carries a 10 year warranty, galvanized iron and anodized aluminium alike. Galvanized iron is hot-dip coated to ASTM A123 at 90 microns, the basis of the warranty. Ask us for the written terms and we will send them with your quotation. |
Member sizes, spans and foundations are designed for each project. Not sure which structure fits your site? Read the guide to solar structure types.
Common questions
How does shed type differ from the arm types?
Shed type has columns at both ends of the span and covers a large block of parking. The arm types use one column line with cantilevered arms on one or both sides.
Which coating is used?
SS400 iron, hot-dip galvanized to ASTM A123 after fabrication, with a 90 micron coating.
Where has this been installed?
At Haideri Beverages, on a 350 kWp plant. The project page is linked under installed references.
