Solar Gazebo
Also known as: Solar Patio, East-West Waterproof Type
East-west solar structure that generates power over a usable shaded space. Also sold as Solar Patio or East-West Waterproof Type.

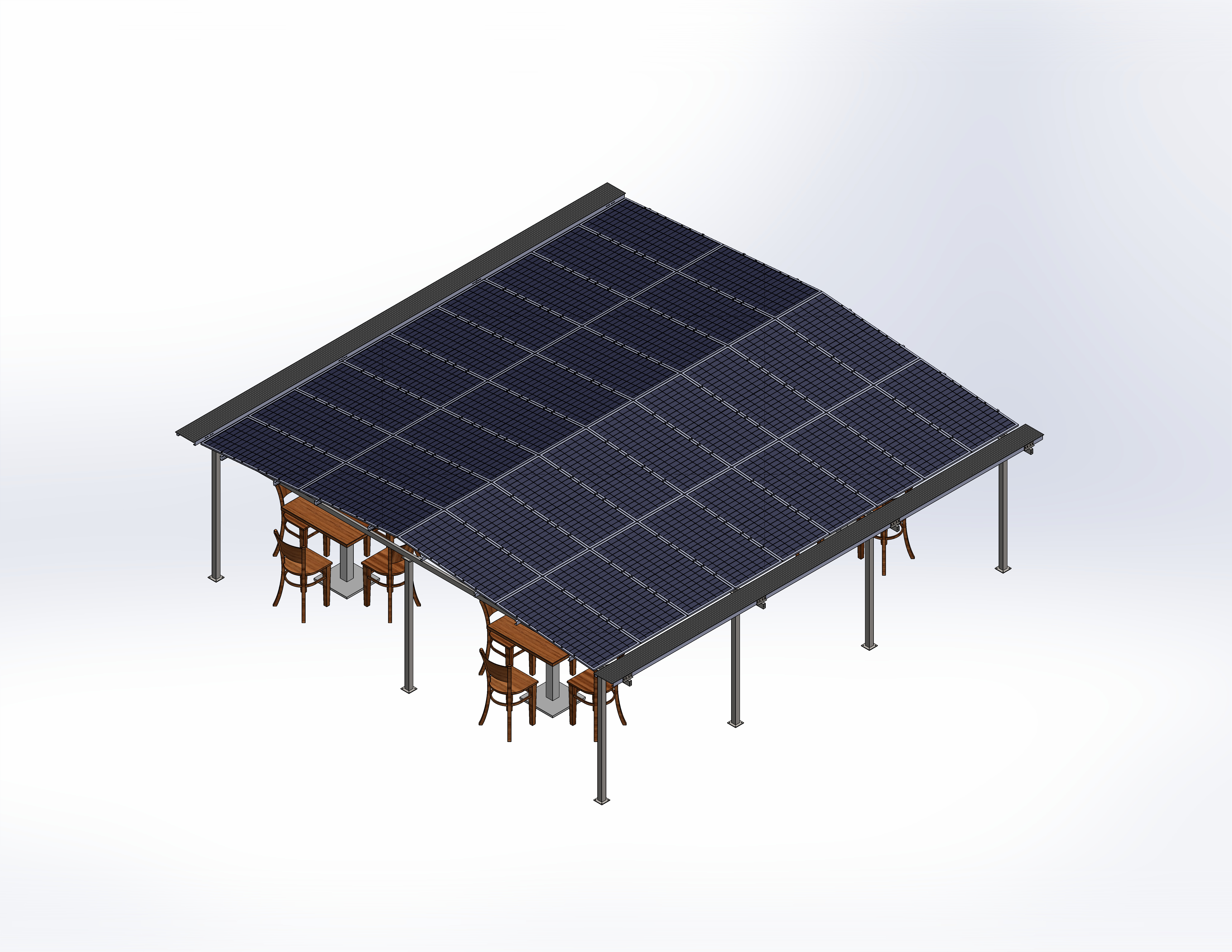

FERO design drawings. Photos of installed structures are on the project pages linked below.
The solar gazebo carries an east-west array over a space people can use, such as an outdoor seating area, a sunroom or a roof garden. It runs at 5 to 30 degrees and suits flat roofs and ground. It is SS400 iron, hot-dip galvanized to ASTM A123 with a 90 micron coating, or painted.
Solar Gazebo specifications
FERO Solar Gazebo
10 year warranty| Application | Flat roof or ground |
|---|---|
| Material and grade | SS400 iron |
| Coating | Hot-dip galvanized to ASTM A123, 90 microns, or painted |
| Fasteners | Galvanized for the structure, SS304 for the modules |
| Inclination | 5 to 30 degrees, customizable |
| Design wind speed | 35 m/s (126 km/h), customizable |
| Warranty | Every FERO structure carries a 10 year warranty, galvanized iron and anodized aluminium alike. Galvanized iron is hot-dip coated to ASTM A123 at 90 microns, the basis of the warranty. Ask us for the written terms and we will send them with your quotation. |
Member sizes, spans and foundations are designed for each project. Not sure which structure fits your site? Read the guide to solar structure types.
Common questions
Is Solar Gazebo the same as Solar Patio?
Yes. Solar Patio and East-West Waterproof Type are other names for the same FERO gazebo structure.
Why an east-west orientation?
The east-west layout suits this canopy form, collecting energy in both the morning and the afternoon while leaving shaded usable space underneath.
Where can I read more about residential installs?
See the GFE blog post on east-west solar structures for homes in Pakistan, and the portfolio projects linked on this page.
