Solar Tubewell / Water Pump Structure
Ground structure for solar tubewells and irrigation pumps, with the tilt adjusted by hand to follow the seasonal sun angle.

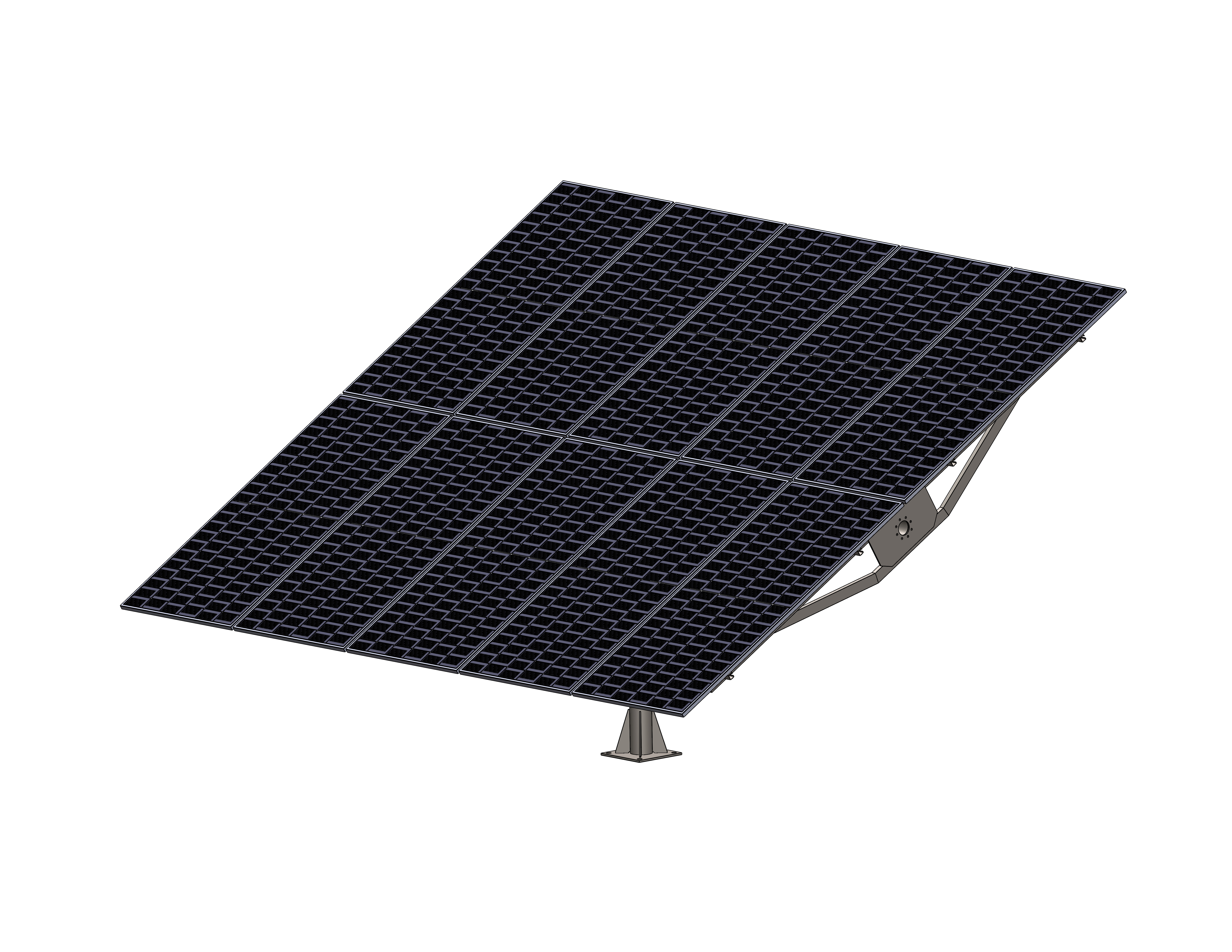

FERO design drawings. Photos of installed structures are on the project pages linked below.
This structure carries the array for a solar-powered tubewell or irrigation pump at an agricultural site, on a dedicated mount at the pump. Its tilt adjusts by hand from 25 to 90 degrees, so operators can follow the seasonal sun angle. It is SS400 iron, hot-dip galvanized to ASTM A123 with a 90 micron coating, or painted, with galvanized structure fasteners and SS304 module fasteners.
Solar Tubewell / Water Pump Structure specifications
FERO Solar Tubewell / Water Pump Structure
10 year warranty| Application | Ground, for irrigation and tubewell pumps |
|---|---|
| Material and grade | SS400 iron |
| Coating | Hot-dip galvanized to ASTM A123, 90 microns, or painted |
| Fasteners | Galvanized for the structure, SS304 for the modules |
| Inclination | 25 to 90 degrees, adjusted by hand |
| Design wind speed | 35 m/s (126 km/h), customizable |
| Warranty | Every FERO structure carries a 10 year warranty, galvanized iron and anodized aluminium alike. Galvanized iron is hot-dip coated to ASTM A123 at 90 microns, the basis of the warranty. Ask us for the written terms and we will send them with your quotation. |
Member sizes, spans and foundations are designed for each project. Not sure which structure fits your site? Read the guide to solar structure types.
Common questions
Where is this structure used?
At solar-powered irrigation and tubewell pumps on farms, where the array needs a dedicated mount at the pump site.
Can the tilt be adjusted through the year?
Yes, by hand, across 25 to 90 degrees, so the array can follow the seasonal sun angle.
What materials are used?
SS400 iron, hot-dip galvanized to ASTM A123 with a 90 micron coating, or painted.
