L2 Aluminium
Anodized aluminium structure for concrete flat roofs and open ground. It is light, does not rust, and is set up for the tilt and wind at each site.

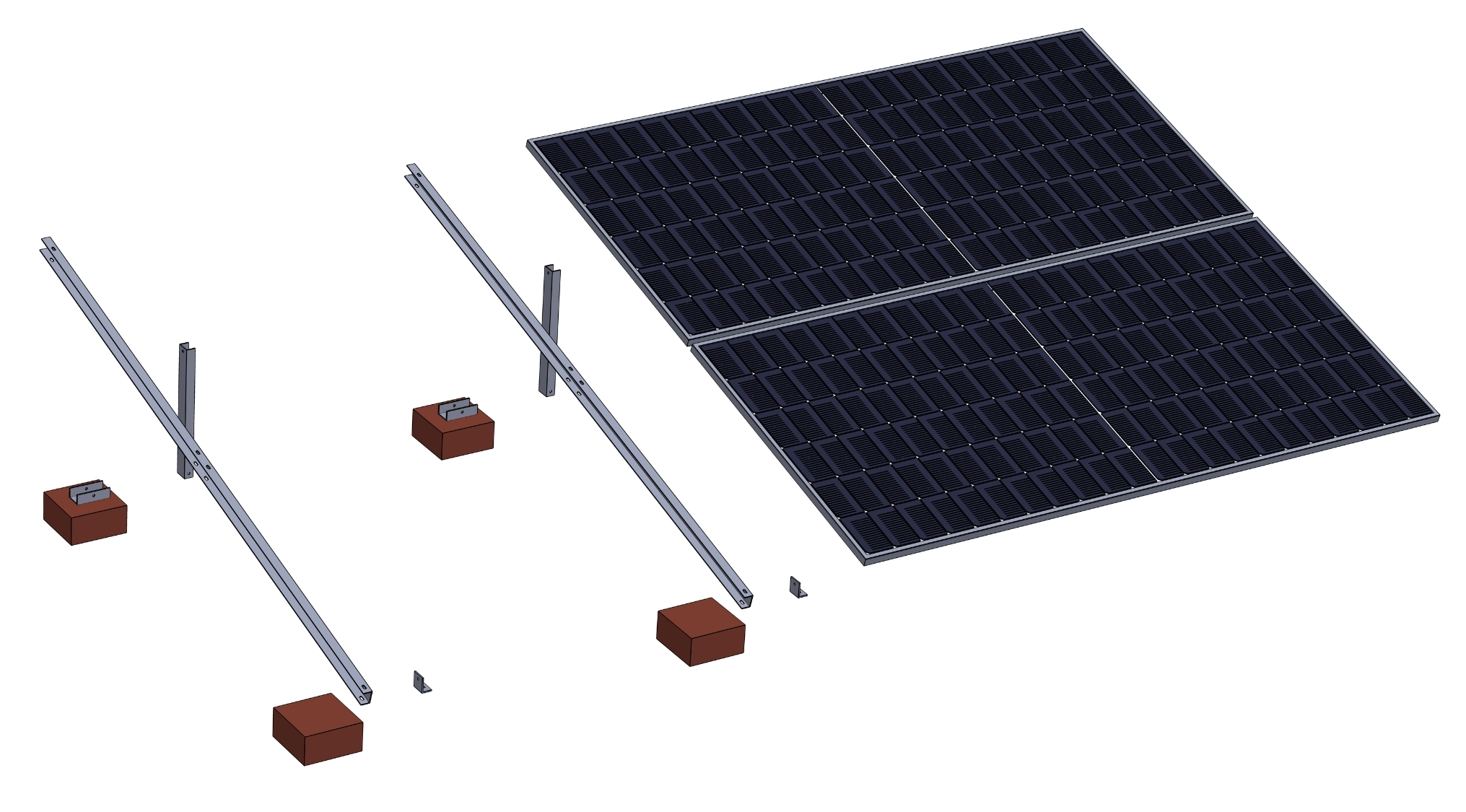

FERO design drawings. Photos of installed structures are on the project pages linked below.
L2 is the modular baseline of the FERO aluminium range, for typical flat roof and ground installations on residential and commercial projects. Aluminium 6063 T5 is light, which helps on roofs with limited capacity, and the anodized finish does not rust. Tilt, spacing and connection details are set for each site from the roof or ground, the wind exposure, the number of modules and the access needed for cleaning.
L2 Aluminium specifications
FERO L2 Aluminium
10 year warranty| Application | Flat roof or ground |
|---|---|
| Material and grade | Aluminium 6063 T5 |
| Coating | Anodized |
| Fasteners | SS304 |
| Inclination | 10 to 45 degrees, customizable |
| Design wind speed | 35 m/s (126 km/h), customizable |
| Warranty | Every FERO structure carries a 10 year warranty, galvanized iron and anodized aluminium alike. Galvanized iron is hot-dip coated to ASTM A123 at 90 microns, the basis of the warranty. Ask us for the written terms and we will send them with your quotation. |
Member sizes, spans and foundations are designed for each project. Not sure which structure fits your site? Read the guide to solar structure types.
Installed references
Common questions
Where is the L2 structure used?
On concrete flat roofs and open ground, for residential and commercial projects where low weight and corrosion resistance matter.
Can the tilt and wind design be changed for my site?
Yes. The standard inclination is 10 to 45 degrees and the standard design wind speed is 35 m/s (126 km/h). Both are set per project from the site conditions.
How does L2 differ from L3?
Both use anodized aluminium 6063 T5. L2 is the modular baseline for typical layouts, and L3 is scaled for larger arrays and wider spans.
